CL23(MEB) Box Metallized Polyester Film Capacitors

Short Description:

CONSTRUCTION The MEB is non-inductive, and the metallized polyester film is used as the dielectric / electrode. The wire is tinned with copper wire, and the epoxy resin is filled in the flame retardant plastic box. SPECIAL FEATURES Non inductance structure and good self-healing High insulation resistance High dV/dt ability TYPICAL APPLICATIONS By-passing, Blocking, Coupling, Decoupling,Pulse,Logic,Timing, Oscillator circuits ELECTRICAL DATA Operating Temperature:-40℃~+85℃ Capacitance Range:...


Product Detail

Product Tags

CONSTRUCTION

The MEB is non-inductive, and the metallized polyester film is used as the dielectric / electrode. The wire is tinned with copper wire, and the epoxy resin is filled in the flame retardant plastic box.

SPECIAL FEATURES

Non inductance structure and good self-healing

High insulation resistance

High dV/dt ability

TYPICAL APPLICATIONS

By-passing, Blocking, Coupling, Decoupling,Pulse,Logic,Timing,

Oscillator circuits

ELECTRICAL DATA

Operating Temperature:-40℃~+85℃

Capacitance Range:0.001~1.0μF

Capacitance tolerance:±5%(J) ±10(K) ±20(M)

Voltage proof:  1.6UR (2S)

Work Voltage: 50V,100V-630VDC

Dissipation Factor:1.0%Max at 1KHz,25℃

Insulation Resistance:>15000MΩ(C≤0.33μF); >5000MΩ(C>0.33μF)

INTERNAL CONSTRUCTION

TIM图片20190725091823

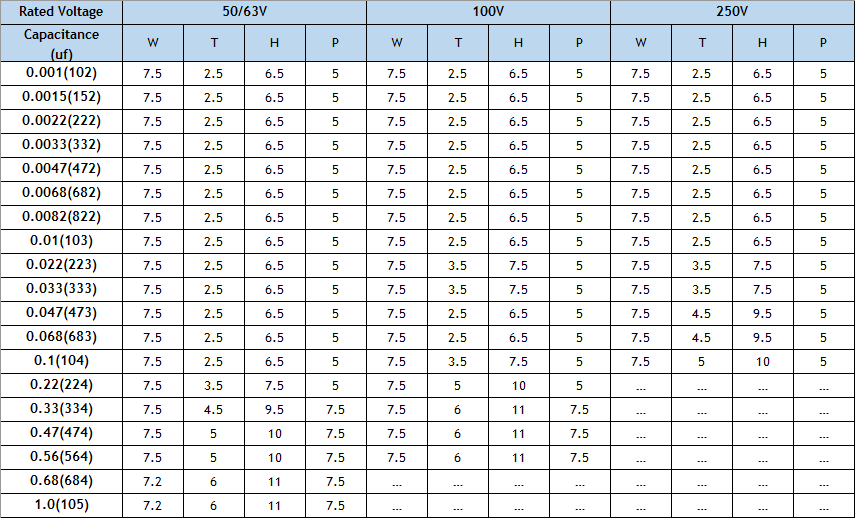

GENERAL DATA

TIM图片20190725092309
TIM图片20190725092304
