MKPA-D MKTA-D

Short Description:

CONSTRUCTION  MKPA-D OR MKTA-D is non-inductive and is made of metallized polyester or polypropylene film as dielectric / electrode. The coating is made of tin-plated copper wire and epoxy resin. SPECIAL FEATURES  Appearance:White Wide capacitance range Excellent damp proof Excellent stability TYPICAL APPLICATIONS Mainly applies to the filter and circuit of audio frequency divider, and in communication and industrial power supply equipment. ELECTRICAL DATA Operating Temperature :-40℃~+85℃ ...


Product Detail

Product Tags

CONSTRUCTION

MKPA-D OR MKTA-D is non-inductive and is made of metallized polyester or polypropylene film as dielectric / electrode. The coating is made of tin-plated copper wire and epoxy resin.

SPECIAL FEATURES

AppearanceWhite

Wide capacitance range

Excellent damp proof

Excellent stability

TYPICAL APPLICATIONS

Mainly applies to the filter and circuit of audio frequency divider, and in communication and industrial power supply equipment.

ELECTRICAL DATA

Operating Temperature -40℃~+85℃

Capacitance Range 0.01~100μF

Capacitance tolerance ±5%(J)

Voltage proof 1.6UR (2S)

Work Voltage 100V, 250V,400V, 630VDC

Dissipation Factor 0.08%Max at 1KHz,25℃

Insulation Resistance >15000MΩ(C≤0.33μF)>5000MΩ(C0.33μF)

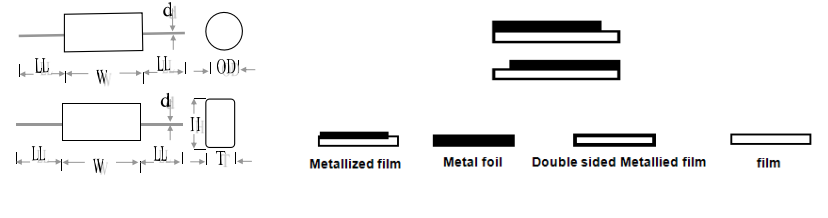

INTERNAL CONSTRUCTION

916150846

GENERAL DATA

MKTA-D

Capacity

MKTA-D  100V

MKTA-D  100V

circular)

Part Number

sector

Part Number

W*OD

W*H*T

0.1

10*18.5

C1ET104J2ADC9JEN3G2A

18.5*11.5*7

C1EA104J2ADC9JEN3G2A

0.22

10*18.5

C1ET224J2ADC9JEN3G8A

18.5*11.5*7

C1EA224J2ADC9JEN3G8A

0.33

10*18.5

C1ET334J2ADC9JEN3G7A

18.5*11.5*7

C1EA334J2ADC9JEN3G7A

0.47

10*18.5

C1ET474J2ADC9JEN3G6A

18.5*11.5*7

C1EA474J2ADC9JEN3G6A

0.56

10.5*18.5

C1ET564J2ADC9JEN3G5A

18.5*11.5*7

C1EA564J2ADC9JEN3G5A

0.68

10.5*18.5

C1ET684J2ADC9JEN3G5A

18.5*11.5*7

C1EA684J2ADC9JEN3G5A

0.82

10*18.5

C1ET824J2ADC9JEN3G5A

18.5*11.5*7

C1EA824J2ADC9JEN3G5A

1.0

9*25

C1ET105J2ADG9JEN3G5A

18.5*12*7.5

C1EA105J2ADC9JEN3G5A

1.2

9.5*25

C1ET125J2ADG9JEN3G5A

25*11.5*6.0

C1EA125J2ADG9JEN3G5A

1.5

9.5*25

C1ET155J2ADG9JEN3G0A

25*10.5*6

C1EA155J2ADG9JEN3G0A

1.8

9.5*25

C1ET185J2ADG9JEN3G0A

25*11.5*6.5

C1EA185J2ADG9JEN3G0A

2.0

10*25

C1ET205J2ADG9JEN3G0A

25*11.5*7

C1EA205J2ADG9JEN3G0A

2.2

10.5*25

C1ET225J2ADG9JEN3G0A

25*12*7.5

C1EA225J2ADG9JEN3G0A

2.7

11.5*25

C1ET275J2ADG9JEN3G0A

25*13*8.5

C1EA275J2ADG9JEN3G0A

3.0

12*25

C1ET305J2ADG9JEN3G0A

25*14.5*8

C1EA305J2ADG9JEN3G0A

3.3

12.5*25

C1ET335J2ADG9JEN3G0A

25*15*8.5

C1EA335J2ADG9JEN3G0A

3.5

13*25

C1ET355J2ADG9JEN3G0A

25*16*9.5

C1EA355J2ADG9JEN3G0A

3.9

13*25

C1ET395J2ADG9JEN3G0A

31*15*8.5

C1EA395J2ADI9JEN3G0A

4.7

13.5*31

C1ET475J2ADI9JEN3G0A

31*16*10

C1EA475J2ADI9JEN3G0A

5.6

14.5*31

C1ET565J2ADI9JEN3G0A

31*17.5*11

C1EA565J2ADI9JEN3G0A

6.8

14.5*31

C1ET685J2ADI9JEN3G0A

31*18*11.5

C1EA685J2ADI9JEN3G0A

7.5

15*31

C1ET755J2ADI9JEN3G0A

31*18.5*11.5

C1EA755J2ADI9JEN3G0A

8.2

16*31

C1ET825J2ADI9JEN3G0A

31*18.5*12

C1EA825J2ADI9JEN3G0A

10.0

17.5*31

C1ET106J2ADI9JEN3G0A

31*20*13.5

C1EA106J2ADI9JEN3G0A

12.0

19*31

C1ET126J2ADI9JEN3G0A

35*20*13.5

C1EA126J2ADK9JEN3G0A

15.0

19.5*35

C1ET156J2ADK9JEN3G0A

35*22*15.5

C1EA156J2ADK1JEN3G0A

18.0

21.5*35

C1ET186J2ADK1JEN3G0A

45*22*14

C1EA186J2ADN1JEN3G0A

20.0

22.5*35

C1ET206J2ADK1JEN3G0A

45*23*15

C1EA206J2ADN1JEN3G0A

22.0

23.5*35

C1ET226J2ADK1JEN3G0A

45*24*16

C1EA226J2ADN1JEN3G0A

25.0

21*45

C1ET256J2ADN1JEN3G0A

45*25*17

C1EA256J2ADN1JEN3G0A

27.0

22*45

C1ET276J2ADN1JEN3G0A

45*26*18

C1EA276J2ADN1JEN3G0A

30.0

23*45

C1ET306J2ADN1JEN3G0A

45*27*19

C1EA306J2ADN1JEN3G0A

33.0

24*45

C1ET336J2ADN1JEN3G0A

45*28*20

C1EA336J2ADN1JEN3G0A

39.0

26.5*45

C1ET396J2ADN1JEN3G0A

45*29.5*21.5

C1EA396J2ADN1JEN3G0A

47.0

28.5*45

C1ET476J2ADN1JEN3G0A

55*29.5*20

C1EA476J2ADS1JEN3G0A

56.0

31.5*45

C1ET566J2ADN1JEN3G0A

55*32.5*23

C1EA566J2ADS1JEN3G0A

68.0

30.5*55

C1ET686J2ADS1JEN3G0A

55*34*25

C1EA686J2ADS1JEN3G0A

82.0

34*55

C1ET826J2ADS1JEN3G0A

55*38*27

C1EA826J2ADS2JEN3G0A

100

36.5*55

C1ET107J2ADS2JEN3G0A

55*41*30

C1EA107J2ADS2JEN3G0A



Capacity

MKTA-D 250V

MKTA-D  250V

circular)

Part Number

sector

Part Number

W*OD

W*H*T

0.1

10*18.5

C1ET104J2EDC9JEN3G2A

18.5*11.5*7

C1EA104J2EDC9JEN3G2A

0.22

10*18.5

C1ET224J2EDC9JEN3G8A

18.5*11.5*7

C1EA224J2EDC9JEN3G8A

0.33

10*18.5

C1ET334J2EDC9JEN3G7A

18.5*11.5*7

C1EA334J2EDC9JEN3G7A

0.47

10*18.5

C1ET474J2EDC9JEN3G6A

18.5*11.5*7

C1EA474J2EDC9JEN3G6A

0.56

10*18.5

C1ET564J2EDC9JEN3G5A

18.5*11.5*7

C1EA564J2EDC9JEN3G5A

0.68

10*18.5

C1ET684J2EDC9JEN3G5A

18.5*11.5*7

C1EA684J2EDC9JEN3G5A

0.82

10.5*18.5

C1ET824J2EDC9JEN3G5A

18.5*11.5*7

C1EA824J2EDC9JEN3G5A

1.0

9*25

C1ET105J2EDG9JEN3G5A

18.5*11.5*7.5

C1EA105J2EDC9JEN3G5A

1.2

10*25

C1ET125J2EDG9JEN3G5A

25*11*6.5

C1EA125J2EDG9JEN3G5A

1.5

11*25

C1ET155J2EDG9JEN3G5A

25*12*7.5

C1EA155J2EDG9JEN3G5A

1.8

11.5*25

C1ET185J2EDG9JEN3G5A

25*14*7.5

C1EA185J2EDG9JEN3G5A

2.0

12*25

C1ET205J2EDG9JEN3G5A

25*14.5*8

C1EA205J2EDG9JEN3G5A

2.2

12.5*25

C1ET225J2EDG9JEN3G5A

31*14*7.5

C1EA225J2EDI9JEN3G5A

2.7

14*25

C1ET275J2EDG9JEN3G5A

31*15*8.5

C1EA275J2EDI9JEN3G5A

3.0

13*31

C1ET305J2EDI9JEN3G5A

31*15.5*9

C1EA305J2EDI9JEN3G5A

3.3

13.5*31

C1ET335J2EDI9JEN3G5A

31*16*9.5

C1EA335J2EDI9JEN3G5A

3.5

14*31

C1ET355J2EDI9JEN3G5A

31*16.5*10

C1EA355J2EDI9JEN3G5A

3.9

15.5*31

C1ET395J2EDI9JEN3G5A

31*17*10.5

C1EA395J2EDI9JEN3G5A

4.7

16.5*31

C1ET475J2EDI9JEN3G5A

31*18.5*12

C1EA475J2EDI9JEN3G5A

5.6

17.5*31

C1ET565J2EDI9JEN3G5A

35*21*14

C1EA565J2EDK9JEN3G5A

6.8

18.5*35

C1ET685J2EDK9JEN3G5A

35*21*14.5

C1EA685J2EDK9JEN3G5A

7.5

19*35

C1ET755J2EDK9JEN3G5A

35*22*14.0

C1EA755J2EDK1JEN3G5A

8.2

20*35

C1ET825J2EDK9JEN3G5A

35*22.5*14.5

C1EA825J2EDK9JEN3G5A

10.0

21*35

C1ET106J2EDK1JEN3G5A

45*21.5*13.5

C1EA106J2EDN1JEN3G5A

12.0

23.5*35

C1ET126J2EDK1JEN3G5A

45*23*15

C1EA126J2EDN1JEN3G5A

15.0

22.5*45

C1ET156J2EDN1JEN3G5A

45*25*17

C1EA156J2EDN1JEN3G5A

18.0

23.5*45

C1ET186J2EDN1JEN3G5A

45*27*19

C1EA186J2EDN1JEN3G5A

20.0

24.5*45

C1ET206J2EDN1JEN3G5A

45*28*20.5

C1EA206J2EDN1JEN3G5A

22.0

25.5*45

C1ET226J2EDN1JEN3G5A

45*29.5*21.5

C1EA226J2EDN1JEN3G5A

25.0

28*45

C1ET256J2EDN1JEN3G5A

55*29*19.5

C1EA256J2EDS1JEN3G5A

27.0

28.5*45

C1ET276J2EDN1JEN3G5A

55*30*20.5

C1EA276J2EDS1JEN3G5A

30.0

30*45

C1ET306J2EDN1JEN3G5A

55*31*22

C1EA306J2EDS1JEN3G5A

33.0

31.5*45

C1ET336J2EDN1JEN3G5A

55*32.5*23

C1EA336J2EDS1JEN3G5A

39.0

30*55

C1ET396J2EDS1JEN3G5A

55*35*25.5

C1EA396J2EDS1JEN3G5A

47.0

33*55

C1ET476J2EDS1JEN3G5A

55*37.5*28

C1EA476J2EDS2JEN3G5A

56.0

36.5*55

C1ET566J2EDS2JEN3G5A

65*38*27

C1EA566J2EDV2JEN3G5A

68.0

41*55

C1ET686J2EDS2JEN3G5A

65*41*30

C1EA686J2EDV2JEN3G5A

82.0

45*55

C1ET826J2EDS2JEN3G5A

65*44.5*33.5

C1EA826J2EDV2JEN3G5A

100

44*65

C1ET107J2EDV2JEN3G5A

65*48.5*37.5

C1EA107J2EDV2JEN3G5A



Capacity

MKTA-D  400V



circular)

Part Number



W*OD



0.1

10*18.5

C1ET104J2GDC9JEN3G2A



0.22

10*18.5

C1ET224J2GDC9JEN3G8A



0.33

10*18.5

C1ET334J2GDC9JEN3G7A



0.47

10*18.5

C1ET474J2GDC9JEN3G6A



0.56

10.5*18.5

C1ET564J2GDC9JEN3G6A



0.68

10*25

C1ET684J2GDG9JEN3G6A



0.82

11*25

C1ET824J2GDG9JEN3G6A



1.0

11.5*25

C1ET105J2GDG9JEN3G6A



1.2

12.5*25

C1ET125J2GDG9JEN3G6A



1.5

13.5*25

C1ET155J2GDG9JEN3G6A



1.8

12.5*31

C1ET185J2GDI9JEN3G6A



2.0

13.5*31

C1ET205J2GDI9JEN3G6A



2.2

13.5*31

C1ET225J2GDI9JEN3G6A



2.7

15*31

C1ET275J2GDI9JEN3G6A



3.0

16*31

C1ET305J2GDI9JEN3G6A



3.3

16.5*31

C1ET335J2GDI9JEN3G6A



3.5

17*31

C1ET355J2GDI9JEN3G6A



3.9

17.5*31

C1ET395J2GDI9JEN3G6A



4.7

19*31

C1ET475J2GDI9JEN3G6A



5.6

20*35

C1ET565J2GDK9JEN3G6A



6.8

21.5*35

C1ET685J2GDK1JEN3G6A



7.5

22.5*35

C1ET755J2GDK1JEN3G6A



8.2

23*35

C1ET825J2GDK1JEN3G6A



10.0

23*45

C1ET106J2GDN1JEN3G6A



12.0

25*45

C1ET126J2GDN1JEN3G6A



15.0

26.5*45

C1ET156J2GDN1JEN3G6A



18.0

29*45

C1ET186J2GDN1JEN3G6A



20.0

30.5*45

C1ET206J2GDN1JEN3G6A



22.0

31.5*45

C1ET226J2GDN1JEN3G6A



25.0

31*55

C1ET256J2GDS1JEN3G6A



27.0

32.5*55

C1ET276J2GDS1JEN3G6A



30.0

33.5*55

C1ET306J2GDS1JEN3G6A



33.0

34.5*55

C1ET336J2GDS1JEN3G6A



39.0

39*55

C1ET396J2GDS2JEN3G6A



47.0

41*55

C1ET476J2GDS2JEN3G6A



56.0

43*65

C1ET566J2GDV2JEN3G6A



68.0

47*65

C1ET686J2GDV2JEN3G6A



82.0

51*65

C1ET826J2GDV2JEN3G6A



100

54*75

C1ET107J2GDX2JEN3G6A



MKPA-D

Capacity

MKPA-D  100V

MKPA-D  100V

circular)

Part Number

sector

Part Number

W*OD

W*H*T

0.1

10*18.5

C1PT104J2ADC9JEN3G1A

18.5*11.5*7

C1PA104J2ADC9JEN3G1A

0.22

10*18.5

C1PT224J2ADC9JEN3G7A

18.5*11.5*7

C1PA224J2ADC9JEN3G7A

0.33

10*18.5

C1PT334J2ADC9JEN3G6A

18.5*11.5*7

C1PA334J2ADC9JEN3G6A

0.47

10*18.5

C1PT474J2ADC9JEN3G5A

18.5*11.5*7

C1PA474J2ADC9JEN3G5A

0.56

11*18.5

C1PT564J2ADC9JEN3G5A

18.5*12*7.5

C1PA564J2ADC9JEN3G5A

0.68

11.5*18.5

C1PT684J2ADC9JEN3G5A

18.5*13*8.5

C1PA684J2ADC9JEN3G5A

0.82

10*25

C1PT824J2ADG9JEN3G5A

25*11.5*7

C1PA824J2ADG9JEN3G5A

1.0

10*25

C1PT105J2ADG9JEN3G5A

25*12.5*8

C1PA105J2ADG9JEN3G5A

1.2

10*25

C1PT125J2ADG9JEN3G4A

25*11.5*7

C1PA125J2ADG9JEN3G4A

1.5

11*25

C1PT155J2ADG9JEN3G4A

25*12.5*8

C1PA155J2ADG9JEN3G4A

1.8

12*25

C1PT185J2ADG9JEN3G4A

25*13.5*9

C1PA185J2ADG9JEN3G4A

2.0

12*25

C1PT205J2ADG9JEN3G4A

31*14*7.5

C1PA205J2ADI9JEN3G4A

2.2

13*25

C1PT225J2ADG9JEN3G4A

31*14.5*8

C1PA225J2ADI9JEN3G4A

2.7

12*31

C1PT275J2ADI9JEN3G4A

31*15.5*9

C1PA275J2ADI9JEN3G4A

3.0

12.5*31

C1PT305J2ADI9JEN3G4A

31*16*9.5

C1PA305J2ADI9JEN3G4A

3.3

13*31

C1PT335J2ADI9JEN3G4A

31*16.5*10

C1PA335J2ADI9JEN3G4A

3.9

14*31

C1PT395J2ADI9JEN3G4A

31*17.5*11

C1PA395J2ADI9JEN3G4A

4.7

15.5*31

C1PT475J2ADI9JEN3G4A

31*18*11.5

C1PA475J2ADI9JEN3G4A

5.6

17*31

C1PT565J2ADI9JEN3G4A

31*20*14

C1PA565J2ADI9JEN3G4A

6.8

18.5*31

C1PT685J2ADI9JEN3G4A

35*20.5*14

C1PA685J2ADK9JEN3G4A

7.5

19*31

C1PT755J2ADI9JEN3G4A

35*21*15

C1PA755J2ADK1JEN3G4A

8.0

20*31

C1PT805J2ADI9JEN3G4A

35*21.5*15.5

C1PA805J2ADK1JEN3G4A

8.2

20.5*31

C1PT825J2ADI9JEN3G4A

35*22*16

C1PA825J2ADK1JEN3G4A

10.0

20*35

C1PT106J2ADK1JEN3G4A

45*22*14

C1PA106J2ADN1JEN3G4A

12.0

23*35

C1PT126J2ADK1JEN3G4A

45*23.5*16

C1PA126J2ADN1JEN3G4A

15.0

22*45

C1PT156J2ADN1JEN3G4A

45*25.5*17.5

C1PA156J2ADN1JEN3G4A

18.0

24.5*45

C1PT186J2ADN1JEN3G4A

45*27.5*19.5

C1PA186J2ADN1JEN3G4A

20.0

25.5*45

C1PT206J2ADN1JEN3G4A

45*28.5*21

C1PA206J2ADN1JEN3G4A

22.0

26*45

C1PT226J2ADN1JEN3G4A

45*29.5*21.5

C1PA226J2ADN1JEN3G4A

25.0

27.5*45

C1PT256J2ADN1JEN3G4A

55*29.5*18.5

C1PA256J2ADS1JEN3G4A

27.0

28.5*45

C1PT276J2ADN1JEN3G4A

55*30.5*21

C1PA276J2ADS1JEN3G4A

30.0

30.5*45

C1PT306J2ADN1JEN3G4A

55*31.5*22

C1PA306J2ADS1JEN3G4A

33.0

31.5*45

C1PT336J2ADN1JEN3G4A

55*33*23.5

C1PA336J2ADS1JEN3G4A

39.0

30*55

C1PT396J2ADS1JEN3G4A

55*35.5*26

C1PA396J2ADS1JEN3G4A

47.0

33*55

C1PT476J2ADS1JEN3G4A

55*38.5*29

C1PA476J2ADS1JEN3G4A

56.0

36*55

C1PT566J2ADS2JEN3G4A

65*39*28

C1PA566J2ADV2JEN3G4A

68.0

39.5*55

C1PT686J2ADS2JEN3G4A

65*42*31

C1PA686J2ADV2JEN3G4A

82.0

43*55

C1PT826J2ADS2JEN3G4A

65*45.5*34.5

C1PA826J2ADV2JEN3G4A

100

47*56

C1PT107J2ADS2JEN3G4A

65*49.5*38.5

C1PA107J2ADV2JEN3G4A



Capacity

MKPA-D  250V

MKPA-D 250V

circular)

Part Number

sector

Part Number

W*OD

W*H*T

0.1

10*18.5

C1PT104J2EDC9JEN3G1A

18.5*11.5*7

C1PA104J2EDC9JEN3G1A

0.22

10*18.5

C1PT224J2EDC9JEN3G7A

18.5*11.5*7

C1PA224J2EDC9JEN3G7A

0.33

10*18.5

C1PT334J2EDC9JEN3G6A

18.5*11.5*7

C1PA334J2EDC9JEN3G6A

0.47

10*18.5

C1PT474J2EDC9JEN3G5A

18.5*11.5*7

C1PA474J2EDC9JEN3G5A

0.56

11*18.5

C1PT564J2EDC9JEN3G5A

18.5*12*7.5

C1PA564J2EDC9JEN3G5A

0.68

11.5*18.5

C1PT684J2EDC9JEN3G5A

18.5*13*8.5

C1PA684J2EDC9JEN3G5A

0.82

10*25

C1PT824J2EDG9JEN3G5A

25*11.5*7

C1PA824J2EDG9JEN3G5A

1.0

11*25

C1PT105J2EDG9JEN3G5A

25*12.5*8

C1PA105J2EDG9JEN3G5A

1.2

11.5*25

C1PT125J2EDG9JEN3G5A

25*13.5*9

C1PA125J2EDG9JEN3G5A

1.5

13*25

C1PT155J2EDG9JEN3G5A

25*15*10.5

C1PA155J2EDG9JEN3G5A

1.8

14*25

C1PT185J2EDG9JEN3G5A

31*15.5*9.5

C1PA185J2EDI9JEN3G5A

2.0

14.5*25

C1PT205J2EDG9JEN3G5A

31*16*10

C1PA205J2EDI9JEN3G5A

2.2

15*25

C1PT225J2EDG9JEN3G5A

31*16.5*10.5

C1PA225J2EDI9JEN3G5A

2.7

15*31

C1PT275J2EDI9JEN3G5A

31*18*11.5

C1PA275J2EDI9JEN3G5A

3.0

15.5*31

C1PT305J2EDI9JEN3G5A

31*18.5*12.5

C1PA305J2EDI9JEN3G5A

3.3

16.5*31

C1PT335J2EDI9JEN3G5A

31*19.5*13.5

C1PA335J2EDI9JEN3G5A

3.9

17.5*31

C1PT395J2EDI9JEN3G5A

31*21*14.5

C1PA395J2EDI9JEN3G5A

4.7

19*31

C1PT475J2EDI1JEN3G5A

35*20.5*14.5

C1PA475J2EDK9JEN3G5A

5.6

19.5*35

C1PT565J2EDK1JEN3G5A

35*22.5*16.5

C1PA565J2EDK1JEN3G5A

6.8

21.5*35

C1PT685J2EDK1JEN3G5A

45*21.5*14.5

C1PA685J2EDN1JEN3G5A

7.5

22.5*35

C1PT755J2EDK1JEN3G5A

45*23*15.5

C1PA755J2EDN1JEN3G5A

8.0

23.5*35

C1PT805J2EDK1JEN3G5A

45*23.5*16

C1PA805J2EDN1JEN3G5A

8.2

21*45

C1PT825J2EDN1JEN3G5A

45*24*16

C1PA825J2EDN1JEN3G5A

10.0

22.5*45

C1PT106J2EDN1JEN3G5A

45*26*18

C1PA106J2EDN1JEN3G5A

12.0

25*45

C1PT126J2EDN1JEN3G5A

45*28*20

C1PA126J2EDN1JEN3G5A

15.0

27*45

C1PT156J2EDN1JEN3G5A

45*30*22.5

C1PA156J2EDN1JEN3G5A

18.0

29.5*45

C1PT186J2EDN1JEN3G5A

55*31*21.5

C1PA186J2EDS1JEN3G5A

20.0

27.5*55

C1PT206J2EDS1JEN3G5A

55*32*23

C1PA206J2EDS1JEN3G5A

22.0

29*55

C1PT226J2EDS1JEN3G5A

55*33.5*24

C1PA226J2EDS1JEN3G5A

25.0

31*55

C1PT256J2EDS1JEN3G5A

55*35*25.5

C1PA256J2EDS1JEN3G5A

27.0

32*55

C1PT276J2EDS1JEN3G5A

55*36.5*27

C1PA276J2EDS1JEN3G5A

30.0

33.5*55

C1PT306J2EDS1JEN3G5A

55*38*28.5

C1PA306J2EDS1JEN3G5A

33.0

35*55

C1PT336J2EDS1JEN3G5A

55*39.5*30

C1PA336J2EDS2JEN3G5A

39.0

39.5*55

C1PT396J2EDS2JEN3G5A

65*40*29

C1PA396J2EDV2JEN3G5A

47.0

41.5*55

C1PT476J2EDS2JEN3G5A

65*43*32

C1PA476J2EDV2JEN3G5A

56.0

43.5*65

C1PT566J2EDV2JEN3G5A

65*46.5*35.5

C1PA566J2EDV2JEN3G5A

68.0

46*65

C1PT686J2EDV2JEN3G5A

75*50.5*39.5

C1PA686J2EDX2JEN3G5A

82.0

49*75

C1PT826J2EDX2JEN3G5A

75*55*44

C1PA826J2EDX2JEN3G5A

100

54*75

C1PT107J2EDX2JEN3G5A

75*60*48.5

C1PA107J2EDX2JEN3G5A



Capacity

MKPA-D 400V



circular)

Part Number





W*OD



0.1

10*18.5

C1PT104J2GDC9JEN3G1A





0.22

10*18.5

C1PT224J2GDC9JEN3G7A





0.33

10*18.5

C1PT334J2GDC9JEN3G6A





0.47

11.5*18.5

C1PT474J2GDC9JEN3G6A





0.56

10*25

C1PT564J2GDG9JEN3G6A





0.68

11*25

C1PT684J2GDG9JEN3G6A





0.82

11.5*25

C1PT824J2GDG9JEN3G6A





1.0

13*25

C1PT105J2GDG9JEN3G6A





1.2

14*25

C1PT125J2GDG9JEN3G6A





1.5

15*25

C1PT155J2GDG9JEN3G6A





1.8

15*31

C1PT185J2GDI9JEN3G6A





2.0

16*31

C1PT205J2GDI9JEN3G6A





2.2

16.5*31

C1PT225J2GDI9JEN3G6A





2.7

17.5*31

C1PT275J2GDI9JEN3G6A





3.0

18.5*31

C1PT305J2GDI9JEN3G6A





3.3

19.5*31

C1PT335J2GDI9JEN3G6A





3.9

19.5*35

C1PT395J2GDK9JEN3G6A





4.7

21.5*35

C1PT475J2GDK1JEN3G6A





5.6

21*45

C1PT565J2GDN1JEN3G6A





6.8

22.5*45

C1PT685J2GDN1JEN3G6A





7.5

23.5*45

C1PT755J2GDN1JEN3G6A





8.0

24*45

C1PT805J2GDN1JEN3G6A





8.2

24.5*45

C1PT825J2GDN1JEN3G6A





10.0

26*45

C1PT106J2GDN1JEN3G6A





12.0

28.5*45

C1PT126J2GDN1JEN3G6A



15.0

29.5*55

C1PT156J2GDS1JEN3G6A



18.0

32*55

C1PT186J2GDS1JEN3G6A



20.0

33*55

C1PT206J2GDS1JEN3G6A



22.0

34.5*55

C1PT226J2GDS1JEN3G6A



25.0

37*55

C1PT256J2GDS2JEN3G6A



27.0

38.5*55

C1PT276J2GDS2JEN3G6A



30.0

37*65

C1PT306J2GDV2JEN3G6A



33.0

38.5*65

C1PT336J2GDV2JEN3G6A



39.0

43*65

C1PT396J2GDV2JEN3G6A



47.0

45*65

C1PT476J2GDV2JEN3G6A



56.0

48.5*65

C1PT566J2GDV2JEN3G6A



68.0

53.5*75

C1PT686J2GDX2JEN3G6A



82.0

58*75

C1PT826J2GDX2JEN3G6A



100

57.5*90

C1PT107J2GDZ2JEN3G6A



Rights reserved to amend design data without prior notification.


  • Previous:
  • Next:

  • Related Products

    WhatsApp Online Chat !
